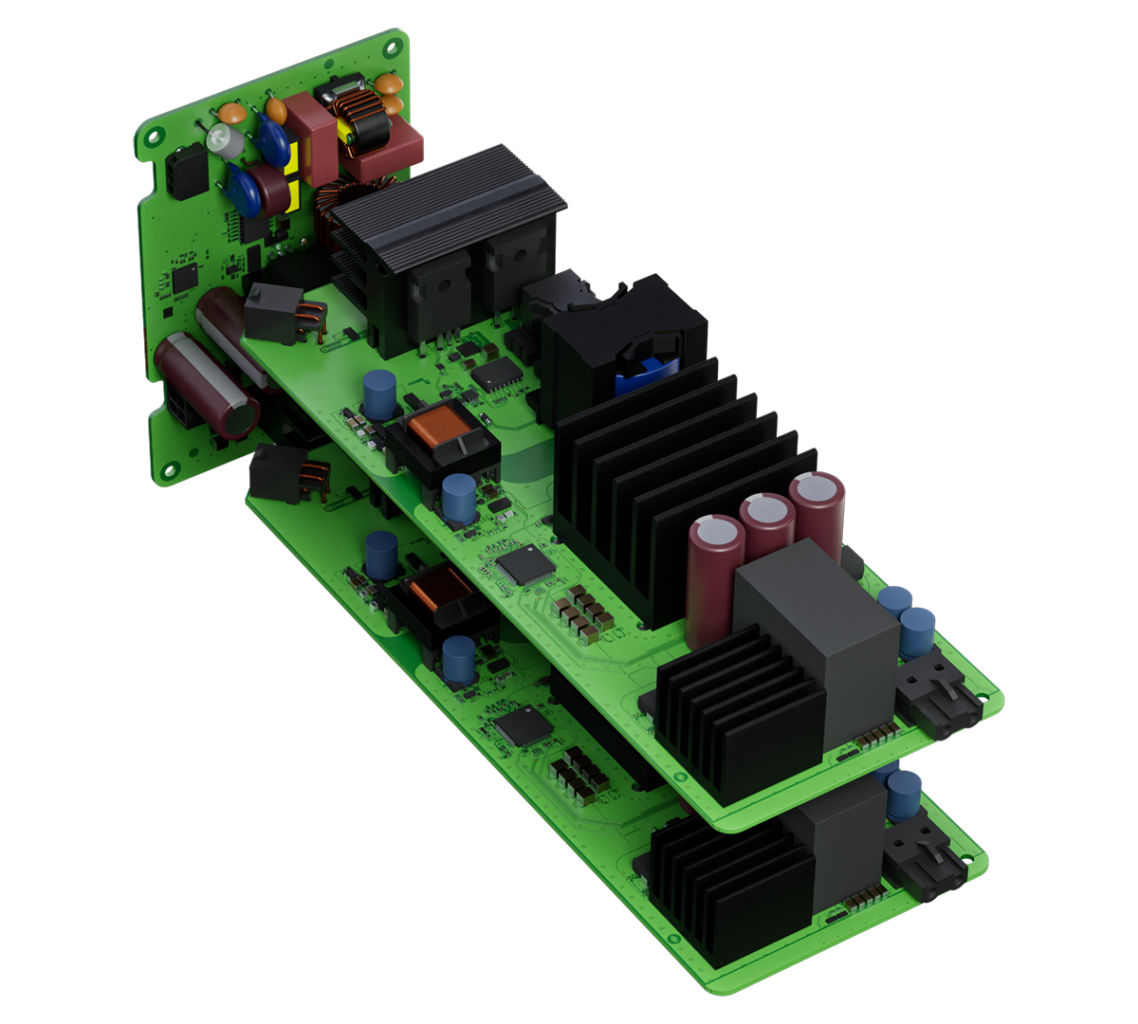

Dual-Output AC/DC Power Supply MPS x2

Dual Outputs for Multiple Load Profiles

Medical devices frequently combine motors, actuators, sensors, control electronics, lighting systems, and handheld instruments. These components often require different voltage levels and performance characteristics.

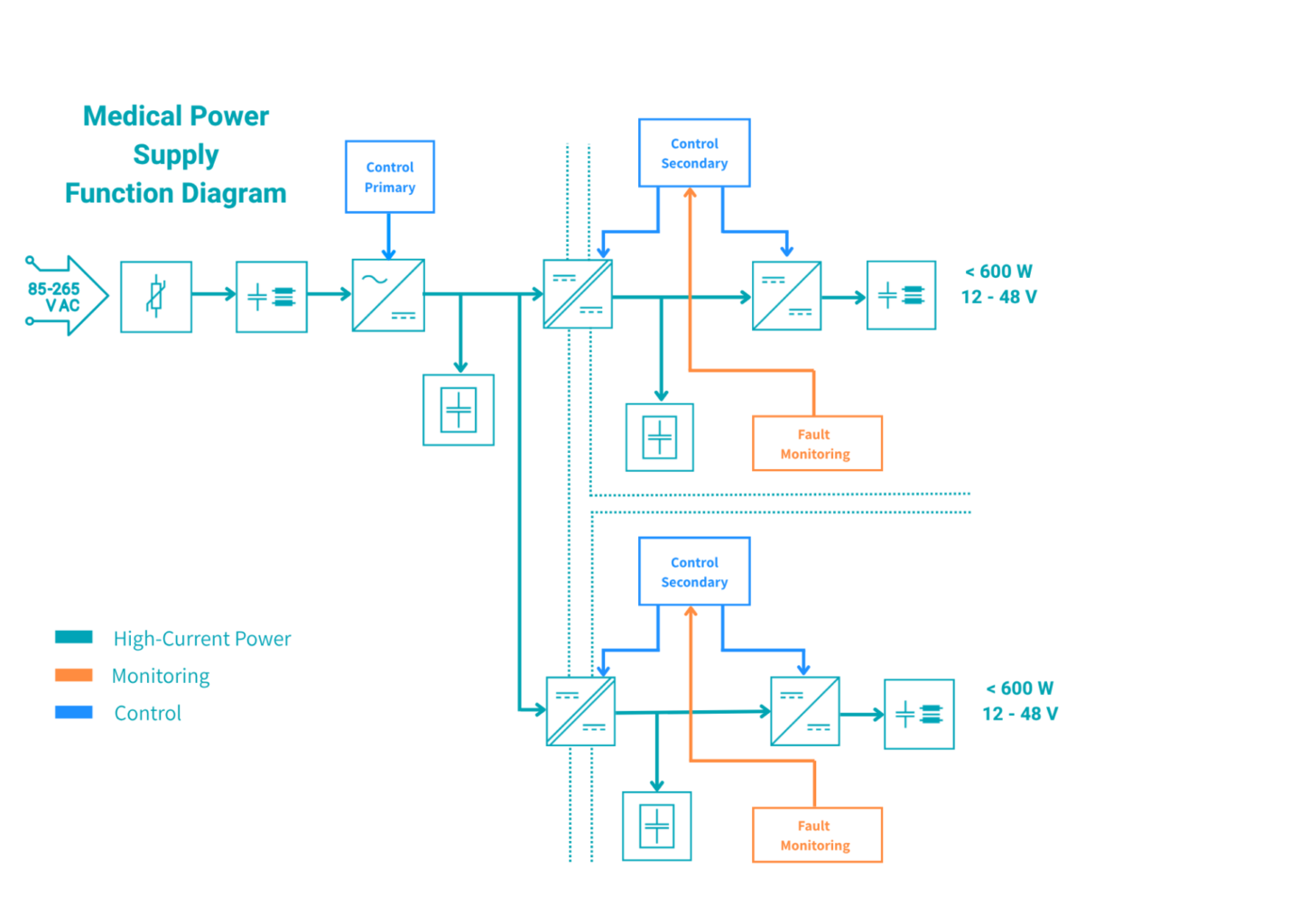

The PSK Multi-Output Medical Power Supply integrates two galvanically isolated DC outputs within a single AC/DC platform, allowing optimized power delivery for multiple subsystems while maintaining the isolation requirements typically demanded in medical applications.

The concept design specifies more than 2 × MOPP isolation between the AC mains input and the outputs, as well as more than 2 × MOOP isolation between the two output channels themselves.

Up to 800 W Peak Power

Many medical applications require short bursts of power significantly above their average consumption. To address such dynamic requirements, the PSK Multi-Output Medical Power Supply delivers up to 800 W peak power for approximately 10 seconds while maintaining a continuous power range of 300-400 W.

This capability is particularly valuable for motorized movement systems, pumps, positioning units, and dental chairs that require high power only briefly during specific operating modes.

Power-on-Demand Concept

The development concept includes a “Power-on-Demand” functionality, where the high-power operating mode is activated only when required. During idle periods, the power supply remains in a quiet standby mode, improving patient comfort by minimizing extraneous noise in the treatment environment.

This approach also contributes to increased efficiency and reduced acoustic emissions in sensitive healthcare environments.

Compact Integration

The enclosed mechanical design supports simple integration into medical and dental equipment. A typical implementation places the power supply within the base structure of a dental treatment chair, where it can efficiently distribute power to the various loads throughout the system.
